With its freely available development resources, the ESP32-S3-BOX-3 stands as a powerful and versatile platform for prototyping innovative projects and building advanced AIoT systems.
Espressif Systems (688018.SH) has introduced the ESP32-S3-BOX-3, the newest addition to its development kit portfolio. Built around the high-performance ESP32-S3 AI SoC, this fully open-source AIoT platform is engineered to redefine what developers expect from modern development boards. Designed with flexibility and scalability in mind, the ESP32-S3-BOX-3 is positioned to become a next-generation tool for intelligent system design.

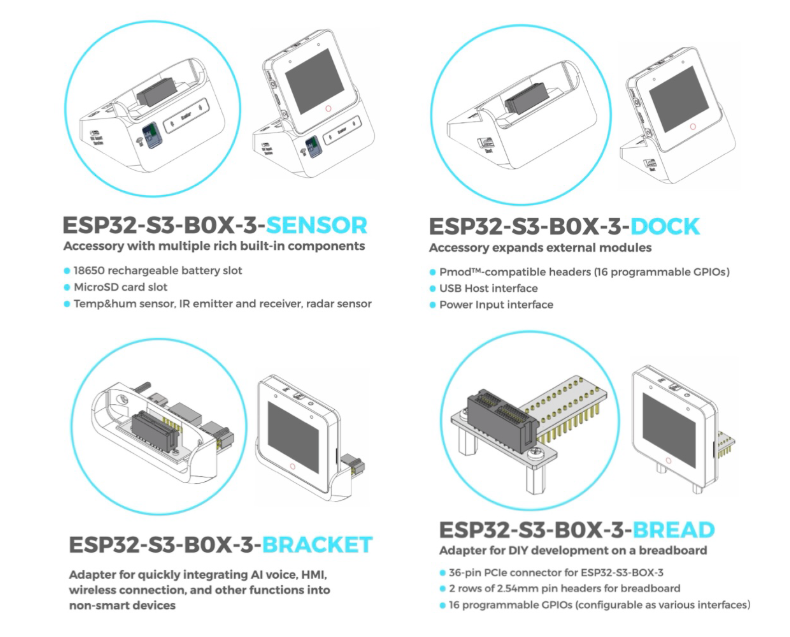

The kit features an extensive ecosystem of expansion options, allowing seamless customization and rapid functional scaling. It integrates smoothly with Espressif’s proven software frameworks, including ESP-SR, ESP RainMaker, and Matter, enabling accelerated development across voice AI, cloud-connected IoT, and interoperable smart devices.
Whether you are an experienced embedded engineer, an IoT innovator, an educator, or a hands-on maker, the ESP32-S3-BOX-3 provides a powerful and accessible foundation for rapid prototyping and the development of sophisticated AIoT solutions.
Uncompromised Al Capabilities
The ESP32-S3-BOX-3 is built around ESP32-S3, Espressif’s advanced Wi-Fi and Bluetooth 5 (LE) AI-enabled SoC. In addition to the chip’s integrated 512KB SRAM, the BOX-3 enhances performance with 16MB Quad SPI flash and 16MB Octal PSRAM, providing substantial memory headroom for Edge AI, multimedia processing, and real-time embedded applications.
Running on ESP-SR, Espressif’s proprietary speech-recognition framework, the BOX-3 enables a fully offline AI voice assistant. It supports far-field voice capture, continuous command recognition, wake-word interruption, and customization of more than 200 voice commands. Beyond offline capabilities, the platform can be extended into an online AI chatbot by integrating with advanced generative AI services such as OpenAI, unlocking conversational intelligence for IoT devices.
Powered by the high-performance ESP32-S3 architecture, BOX-3 delivers an out-of-the-box development environment for Edge AI and Human–Machine Interface (HMI) solutions. Its robust feature set makes it particularly attractive for Industrial IoT (IIoT) deployments, helping organizations modernize legacy control systems and align with Industry 4.0 transformation strategies.
ESP32-S3-BOX-3 Detailed Technical Specifications
| Specification Category | Details |
|---|---|
| SoC / MCU | ESP32-S3-WROOM-1 module, Dual-core Xtensa LX7 (up to 240 MHz) with AI acceleration instructions |
| Wireless Connectivity | Wi-Fi 802.11 b/g/n (2.4 GHz), Bluetooth 5 (LE) |
| Internal Memory | 512 KB SRAM, 384 KB ROM |
| External Memory | 16 MB Quad SPI Flash + 16 MB Octal PSRAM |

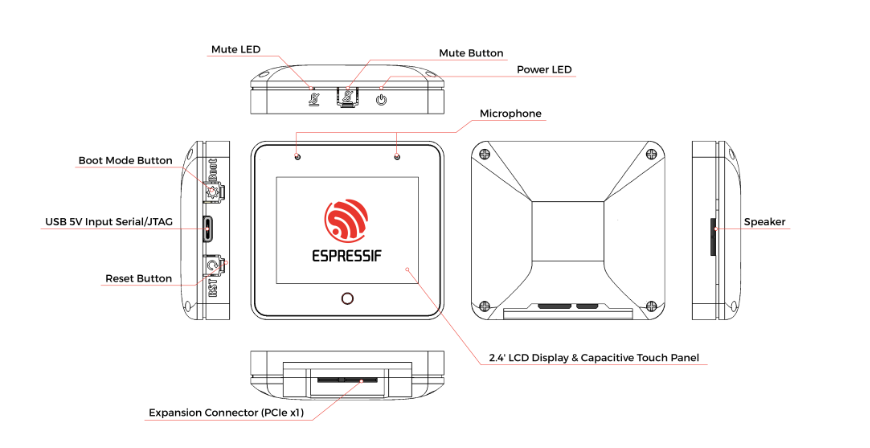

| Display | 2.4-inch SPI TFT LCD, 320 × 240 resolution, Capacitive touchscreen (GT911 controller) |
| Audio | Dual digital microphones, Built-in speaker with amplifier |
| USB Interface | USB Type-C (Power, UART download, debugging) |
| Expansion | High-density PCIe connector for docking modules and accessories |
| GPIO & Interfaces | I²C, SPI, UART, PWM, ADC, I2S, via headers and expansion connector |
| User Interface Controls | Touchscreen, Reset button, Boot button |
| Sensor Support (Accessory Module) |
Optional sensor board includes:
|
| Storage Expansion | MicroSD card slot (via accessory module, up to 32 GB) |
| Battery Support | 18650 Li-ion battery support via accessory board (with charging & protection circuit) |
| Antenna | Integrated PCB antenna |
| Power Supply | 5V via USB-C (recommended 2A) |
| Dimensions | Approx. 61 × 66 × 16.6 mm |
| Supported Frameworks | ESP-IDF, LVGL, Arduino, ESP-SR, ESP RainMaker, Matter |
| Primary Applications | Edge AI, Offline Voice Assistant, HMI Systems, IIoT, Industry 4.0 Applications |
Infographics from Official Espressif
See official video:
